Accessories Scales

Accessories for Scales

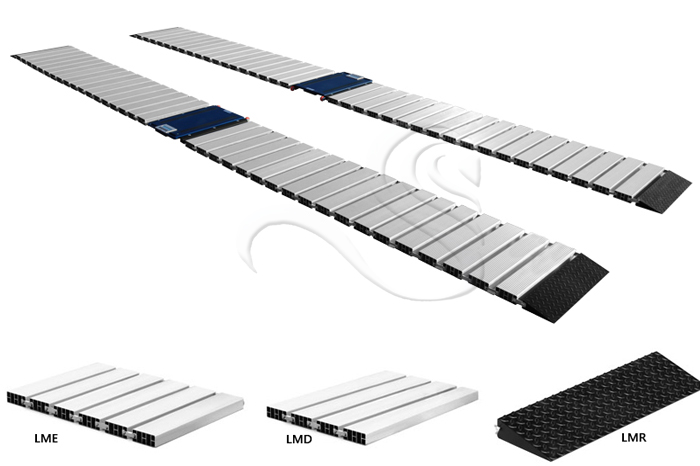

Easy Level

Aksesoris perataan yang dapat dipindahkan terbuat dari bahan aluminium, ideal untuk membuat stasiun penimbangan gandar bergerak atau tetap. Tingkatkan keakuratan pembacaan beban, berkat distribusi beban yang optimal pada gandar selama penimbangan, khusus untuk platform seri WWSE dan WWSD.

WWS-R-1 WWS-R-2 WWS-R-3

Features :

  1. Aluminium structure.
  2. Maximum load capacity of the single module: up to 20t (per axle up to max. 40t).
  3. Single module dimensions:
    1. For WWSE: 990 x 59 x 700 mm (LxHxW)
    2. For WWSD: 650 x 59 x 900 mm (LxHxW)
  4. Non-slip surface for maximum grip on all types of surfaces.
  5. Carrying handle, with adjustable straps, as standard.
  6. Optional iron ramp to facilitate the ascent/descent of the vehicle.
  7. Ramp dimensions:
    1. For WWSE: 201 X 54 X 700 mm (LxHxW)
    2. For WWSD: 201 X 54 X 900 mm (LxHxW)

'Easy Level' Kits

  1. "Easy level" kit composed by:
    1. 12 or 20 levelling modules
    2. 4 ramps
  1. LMEK12: 'Easy Level' kit, for WWSE. Consisting of 12 levelling modules and 4 ramps.
  2. LMDK18: 'Easy Level' kit, for WWSD. Consisting of 20 levelling modules and 4 ramps.
  3. Levelling modules: LME/D: Aluminium levelling module, for WWSE. Dimensions: 990 x 59 x 700/900 mm (LxHxW), LMRE/D: Iron ramp, for LME levelling modules. Dimensions: 201 x 54 x 700/900 mm.

Levelling modules for WWSE platforms

  1. LME: Aluminium levelling module, for WWSE. Dimensions: 990 x 59 x 700 mm (LxHxW).
  2. LMRE: Iron ramp, for LME levelling modules. Dimensions: 201 x 54 x 700 mm (LxHxW).

Levelling modules for WWSD platforms

  1. LMD: Aluminium levelling module, for WWSD. Dimensions: 650 x 59 x 900 mm (LxHxW).
  2. LMRD: Iron ramp, for LMD levelling modules. Dimensions: 201 x 54 x 900 mm (LxHxW).

for the creation of complete axle weighing stations.

  1. LMEK12: "Easy Level" kit, for WWSE. Consisting of 12 levelling modules and 4 ramps.
  2. LMDK18: "Easy Level" kit, for WWSD. Consisting of 20 levelling modules and 4 ramps.

Technical Feature

  1. Ideal to facilitate the boarding and the alighting even for small wheels.
  2. Special vulcanised nonslip rubber applied under the ramp, for good grip on all types of surfaces.
  3. Sturdy structure, made ??of special aluminum.
  4. Fitted with installation kit.
  5. Easily transportable, foldable on the platform.

Available versions

  1. WWSCR : Single aluminium ramp for WWSC. Dimensions 500x150x30mm
  2. WWSER : Aluminium ramp for WWSE. Dimensions 700x150x30mm.
  3. WWSDR : Single aluminium ramp for WWSD and WWSF. Dimensions 900x150x30mm.
